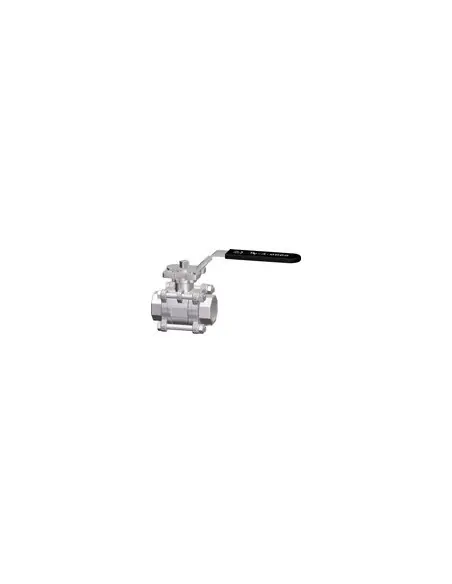

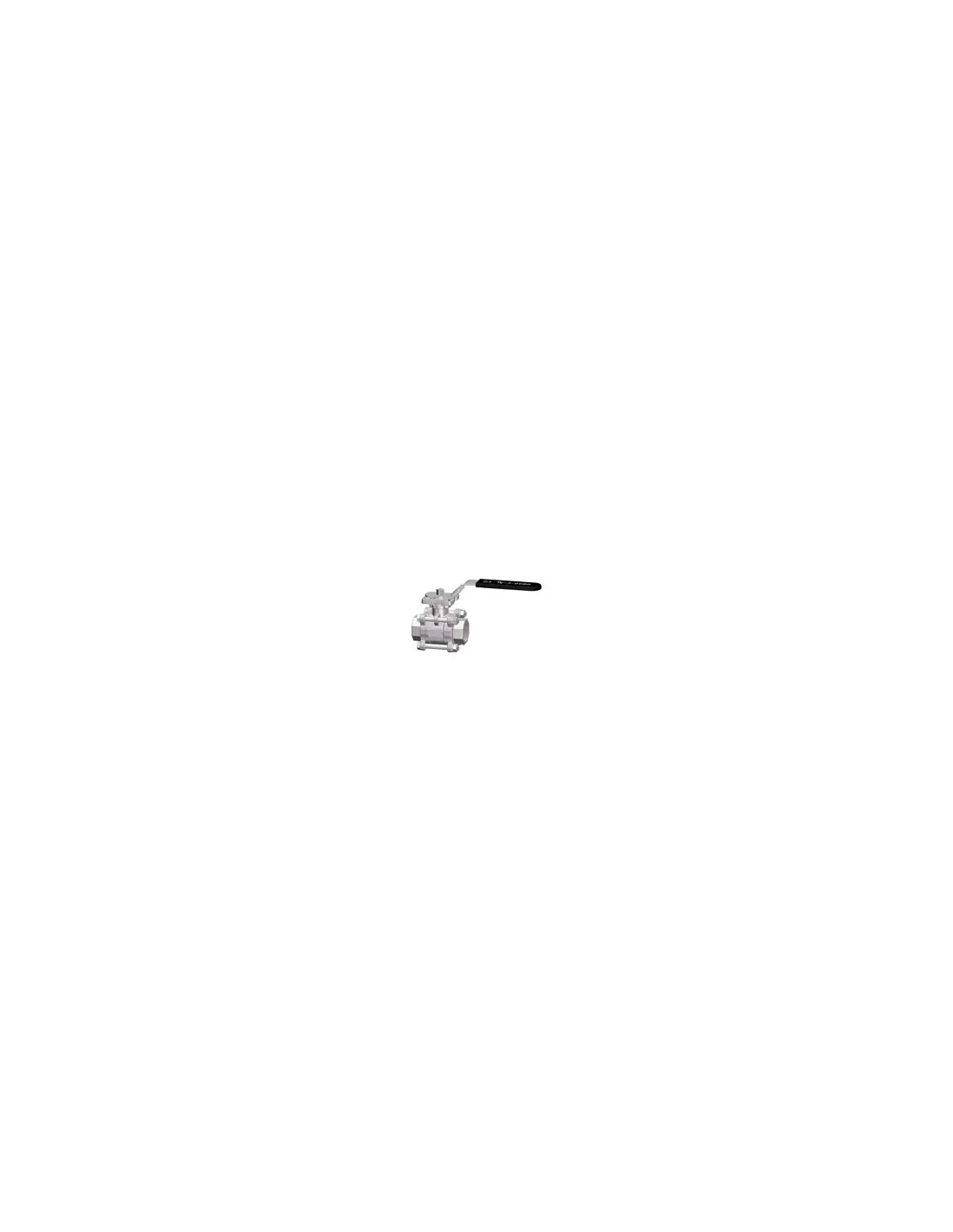

The Ball Valve 3 Pieces - UNIFLOW Fig. BV3MD by Comeval is a versatile and robust floating ball valve designed for efficient flow control in various process applications. It features a split body construction with flanges and is made from investment casting stainless steel CF8M, ensuring durability and resistance to corrosion. The valve includes a PTFE seat for reliable sealing and is bidirectional, allowing flow in both directions. It supports direct mounting and can be operated manually via a hand lever, or automatically using gear or diverse pneumatic and electric actuators. The valve is available in nominal sizes ranging from DN8 to DN100 and can handle a design pressure of PN63. It is suitable for applications involving water, HVAC systems, lubrication, gases, compressed air, and other process fluids. The valve is certified with declarations of conformity for both 2-piece and 3-piece configurations, including ATEX and EAC certifications.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • ISO 228-1
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 63

Datasheet and documents

Description

Floating ball valves, split body, with flanges, construction in investment casting st. steel CF8M, PTFE seat, bidirectional, direct mounting design, for stopping the flow in process applications. Operated by hand lever, gear or actuator.

Specification of the range:

Nominal size range DN8-100, design pressure PN63, operated by hand lever, gear or diverse pneumatic and electric actuators styles and accessories.

Other typical denominations: Ball valve 3 pieces direct mounting

Applications: Water, HVAC, lubrication, gases, compressed air, process, etc.

Certifications: Ball valve 2 pieces and 3 pieces declaration of conformity, Ball valve 2 pieces and 3 pieces declaration of conformity atex, Eac declaration 010, Eac declaration 032

Certificates

Ball valve 2 pieces and 3 pieces declaration of conformity

Ball valve 2 pieces and 3 pieces declaration of conformity atex

Eac declaration 010

Eac declaration 032
