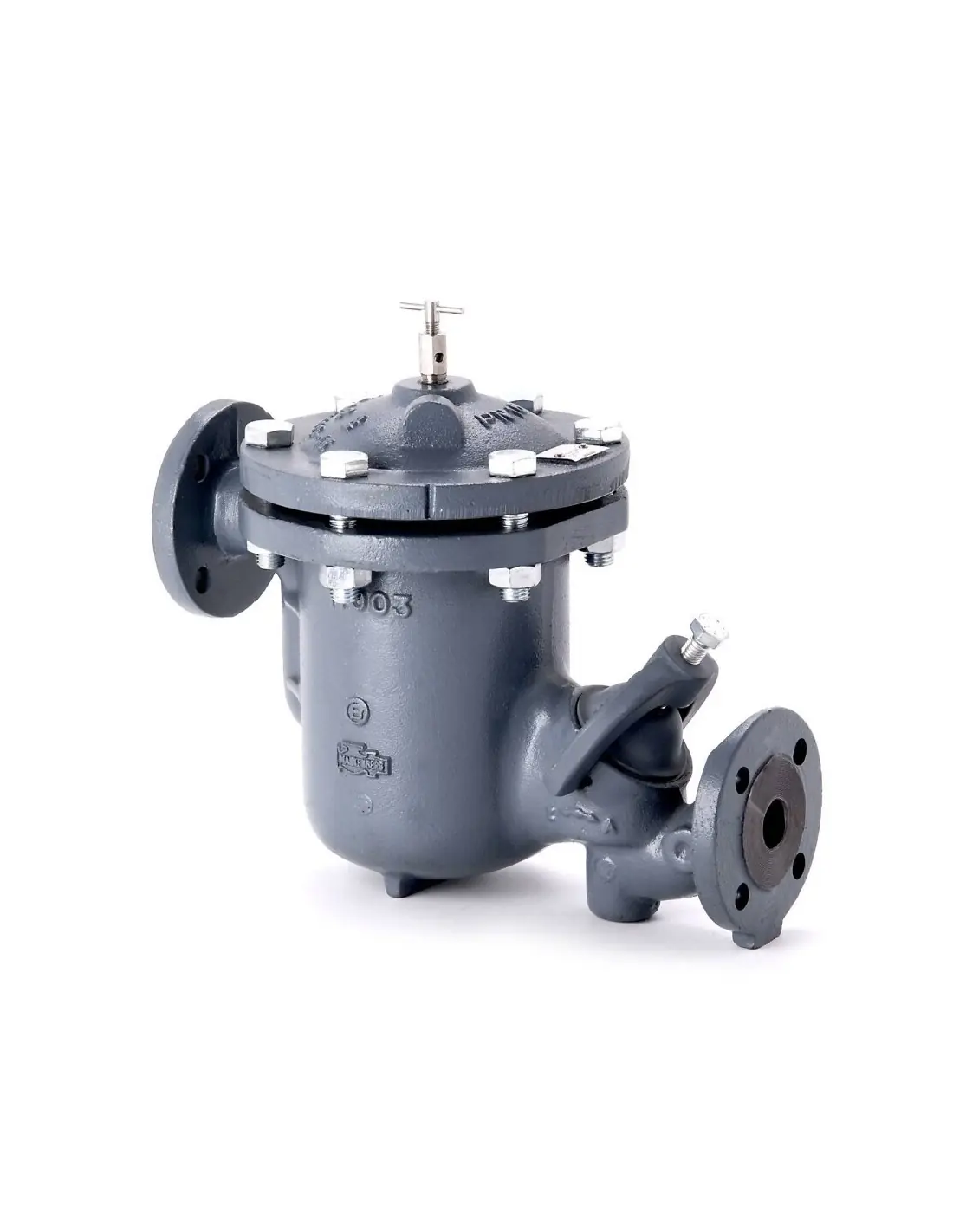

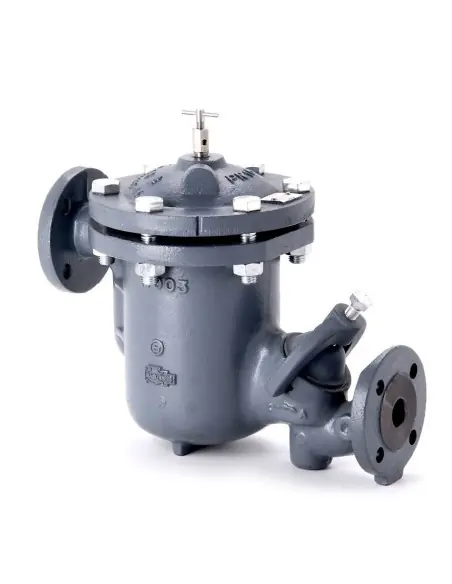

The Steam Traps - KA Niagara by Mankenberg are high-quality, efficient devices designed to discharge condensate, air, and other non-condensable gases from steam systems without letting steam escape. These traps are essential for maintaining optimal performance and energy efficiency in steam systems. Known for their durability and reliability, the KA Niagara series is suitable for a wide range of industrial applications, ensuring smooth operation and reduced maintenance costs. Mankenberg's engineering expertise ensures that these steam traps provide excellent performance even under demanding conditions.

Datasheet and documents

Description

Product features

Steam traps automatically drain condensate without loss of steam or gas. They operate instantaneously and are not affected by backpressure or pressure fluctuations. They do not require an external energy input.

Standard

  • Body made of spheroidal cast iron
  • Internal parts made of stainless steel
  • Metallic valve seal
  • Manual bleed valve

Options

  • Manual test gag
  • Thermal start-up bleeding and fixed continuous bleed orifice
  • Fixed continuous bleed orifice
  • Thermal start-up and continuous bleeding
  • Adjustable continuous bleeding
  • Drain plug in sludge collecting chamber
  • Various seal materials suitable for your medium

Technical data

DN
15 - 25
PN
16
p
0 - 16 bar
Q
3.7 m3/h
T
200 °C



Steam up to 200 °C | metallic seal | body made of GGG-40, inner parts of stainless steel
