Description

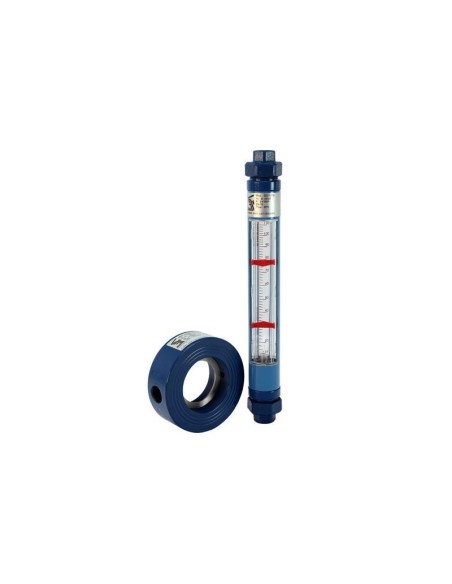

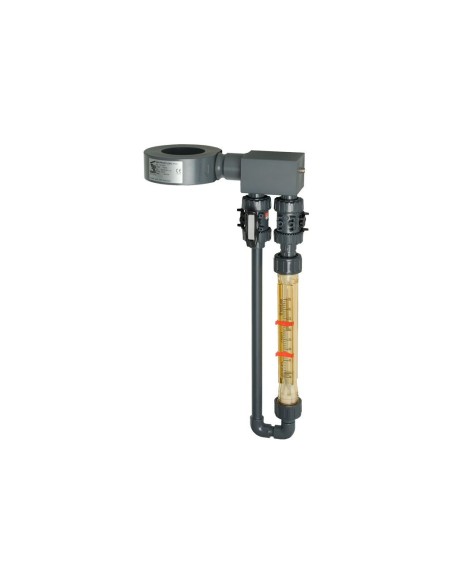

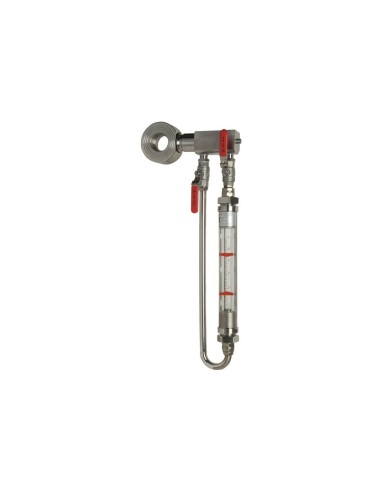

Medidores de caudal derivado placa orificio para grandes caudales de líquidos, gases y vapor.
Montaje en tuberías horizontales y verticales.
Suministro de placa orificio y caudalímetro en derivación, no de tuberías de conexionado ni válvulas de aislamiento.
Technical specifications
Indication by means of by-pass flowmeter
Measuring ranges
- 2 m3/h … 20000 m3/h H2O
- 30 Nm3/h … 300000 Nm3/h air
Accuracy
- ±4% f.s.
Connections
- DN50… DN1000
- Orifice plate mounted between flanges
- Flowmeter fittings threaded, flanged or solvent weld socket
- Pressure inlets ¾” BSP
Materials
- EN 1.4404 (SS 316L), PVC, PP, … others on request
Options
- 1 or 2 adjustable switches
- 4-20 mA output, Ex version on request, according to transmitter model
- HART ™ protocols, Profibus, Fieldbus on request, according to transmitter model
