Description

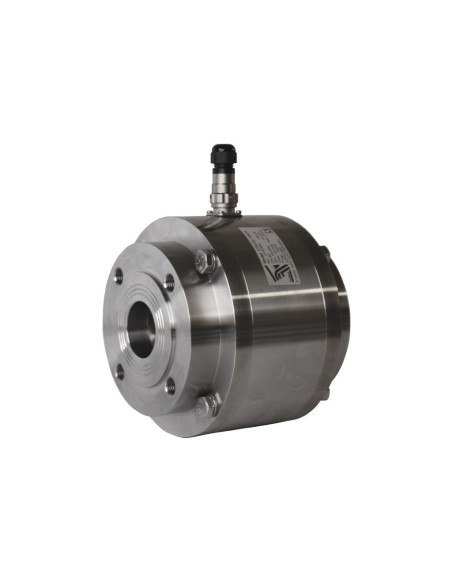

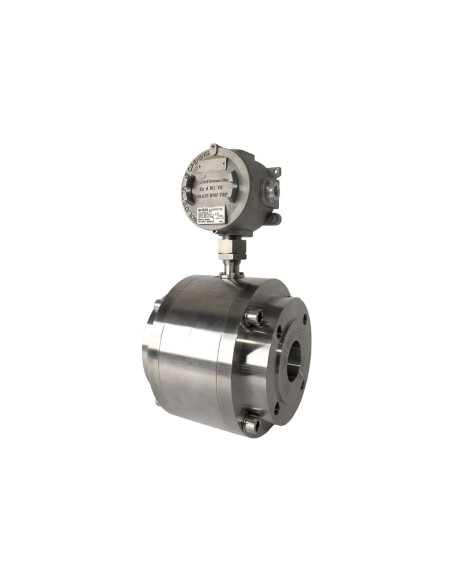

Contador volumétrico para líquidos en general libres de partículas en suspensión, líquidos de viscosidad hasta 120000 cP conductores o no de la corriente eléctrica. Calibrable en la propia instalación. Esterilizable.
Technical specifications
Viscosity up to 120000 cP. Reed switch pulse output.

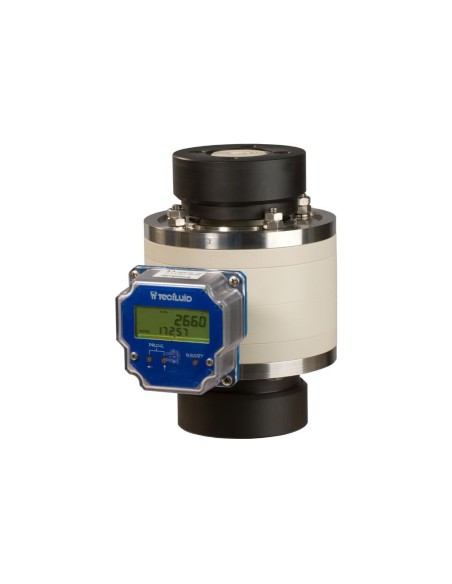

Compatible with associated electronic converters CIP / CP / MT03 / DFD420 series. Others on request.
Considered as “Simple Aparatus” according to ATEX
Measuring range
- 10 l/h … 60 m3/h H2O
Accuracy
- =±0,8%
Connections
- DIN2501 flanges DN10…DN100 PN16
- ANSI flanges, BPS or NPT threades connections
- Sanitary connections according DIN11851
- Clamp ISO 2852… Others on request
Materials
- Body: EN 1.4404 (AISI 316L), PVC, PP y PTFE
- Pistón: PTFE-graphite, Aluminium, Bronze, PVDF
Options
- Design for high pressure on request
- Heating-cooling chamber on request
- Special design for converters from different manufacturers
