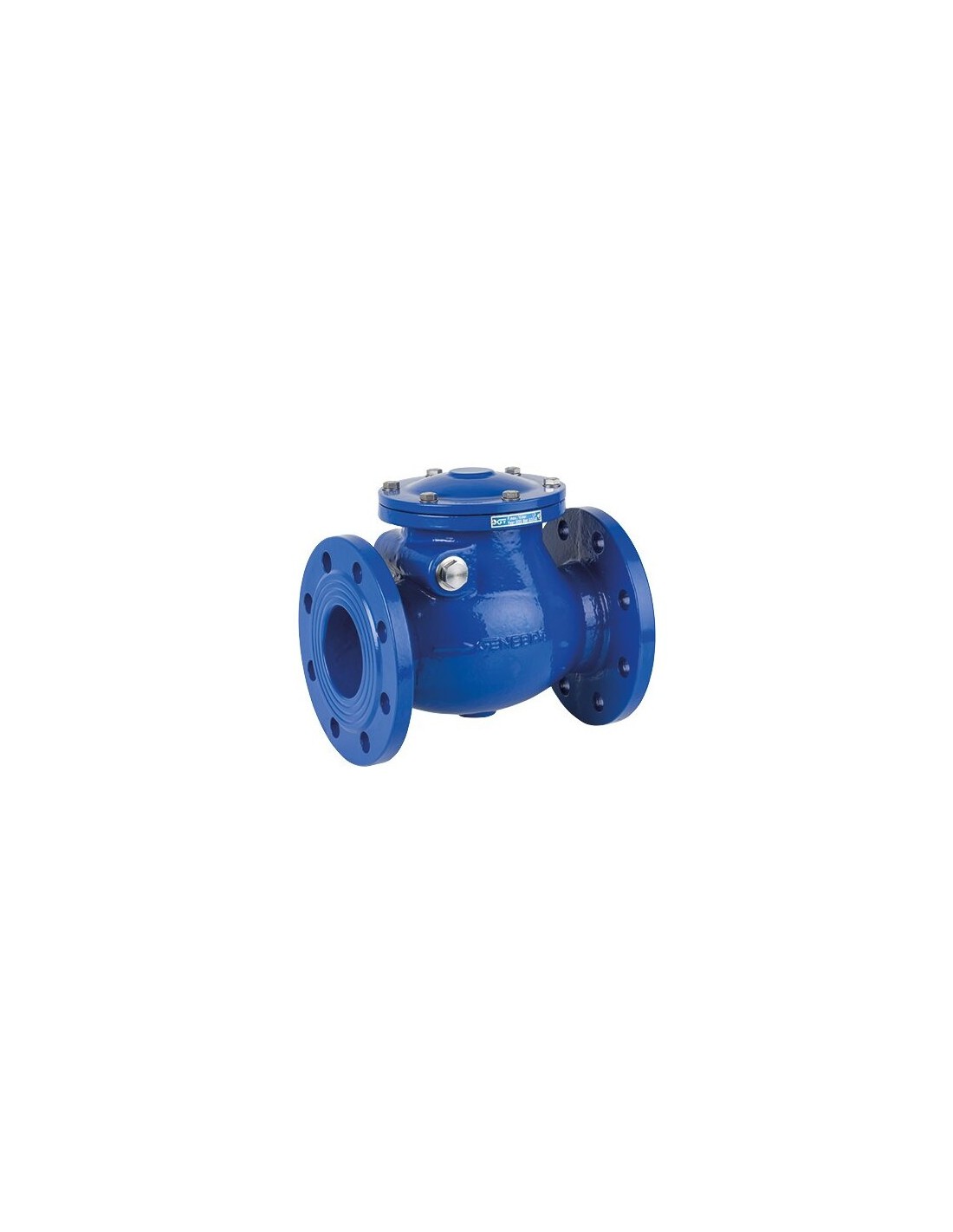

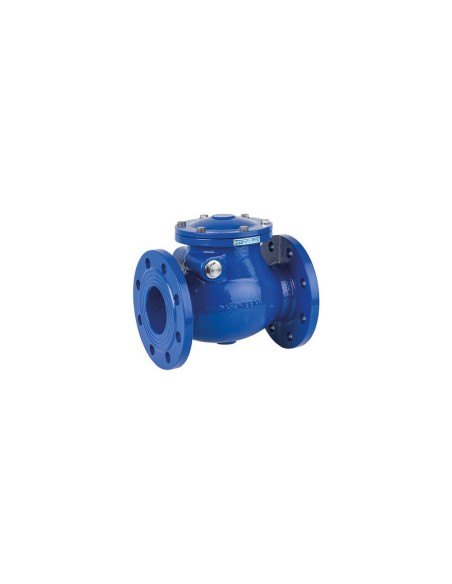

Body: GGG-40. Disk: with EPDM coating. Max. pressure: 16 bar. Temperature: -10°C +120°C. Face to Face according to EN558-1/48 (DIN3202 F6).
Reference: 2455
| Reference | Size | Minimum purchase unit | Weight (Kg) | Box / carton |
| 2455 09 | SWING CHECK VALVE FLANGES PN16 2" | 1 | 9.2 | 1/2 |
| 2455 10 | SWING CHECK VALVE FLANGES PN16 21/2" | 1 | 11.8 | 1/2 |
| 2455 11 | SWING CHECK VALVE FLANGES PN16 3" | 1 | 15.2 | 1/1 |
| 2455 12 | SWING CHECK VALVE FLANGES PN16 4" | 1 | 20.1 | 1/1 |
| 2455 13 | SWING CHECK VALVE FLANGES PN16 5" | 1 | 28.7 | 1/1 |
| 2455 14 | SWING CHECK VALVE FLANGES PN16 6" | 1 | 39.1 | 1/1 |
| 2455 16 | SWING CHECK VALVE FLANGES PN16 8" | 1 | 61.6 | 1/1 |
| 2455 18 | SWING CHECK VALVE FLANGES PN16 10" | 1 | 95.5 | 1/1 |
| 2455 20 | SWING CHECK VALVE FLANGES PN16 12" | 1 | 137.5 | 1/1 |
