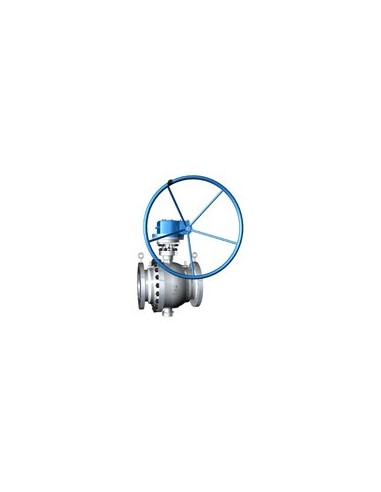

    The Ball Valve Trunnion Mounted - UNIFLOW Fig. BT by Comeval is a versatile and robust valve designed for bidirectional flow stoppage in various industrial applications. It features diverse design combinations, including two-piece and three-piece body configurations, with end connections available in flanged or butt-weld (BW) styles. The valve is constructed from various materials and is available in nominal sizes ranging from DN50 to DN900 (2 to 36 inches) and design pressure ranges from PN16 to PN420 (ANSI Class 150 to 2500). It can be operated manually via a hand lever, or automatically using gear, pneumatic, or electric actuators. Typical applications include HVAC systems, lubrication, gas handling, compressed air, and other process industries. The valve is certified for fire safety, meeting standards such as API 607 and API 6FA, and complies with the Comeval PED certification.
    Standard (Options)
    • ANSI
    Connection (Options)
    • Flanged
    Material (Options)
    • ASTM A216 WCB
    • ASTM A351 CF8
    • ASTM A351 CF3
    • ASTM A351 CF3M
    • ASTM A351 CF8M
    • ASTM A352 LCB
    Pressure Rating (Options)
    • 150 lbs
    • 300 lbs
    • 600 lbs
    • 900 lbs
    • 1500 lbs
    • 2500 lbs

    Datasheet and documents

    Description

    Trunnion ball valves, bidirectional, for stopping the flow in process, industry, etc. Operated by hand lever, gear or actuator.

    Specification of the range:

    Diverse design combinations by body configuration (two-pieces,three-pieces), end connections (flanged, BW), materials of construction, nominal size range (DN50-DN900 / 2-36"), design pressure range (PN16-420 / ANSI Clase 150-2500), operated by hand lever, gear, pneumatic or electric actuators styles and accessories.

    Other typical denominations: Cast steel valves of guided sphere Module H

    Applications: HVAC, lubrication, gases, compressed air, process, etc.

    Certifications: Fire test api 607 floating ball valve 4 8 inches class 300 600, Fire test api 6fa floating ball valve 2 8 inch class 150 300, Fire test api 6fa floating ball valve 8 16 inch class 150 300, Comeval ped

    Product Details

    Ball Valve Trunnion Mounted - UNIFLOW Fig. BT | Comeval

    Certificates

    Fire test api 607 floating ball valve 4 8 inches class 300 600

    Fire test api 6fa floating ball valve 2 8 inch class 150 300

    Fire test api 6fa floating ball valve 8 16 inch class 150 300

    Comeval ped module h certificate of conformity

    Eac certification 032

    Eac declaration 010

    Eac declaration 032

    Floating and trunnion ball valves declaration of conformity

    Floating and trunnion ball valves declaration of conformity atex
