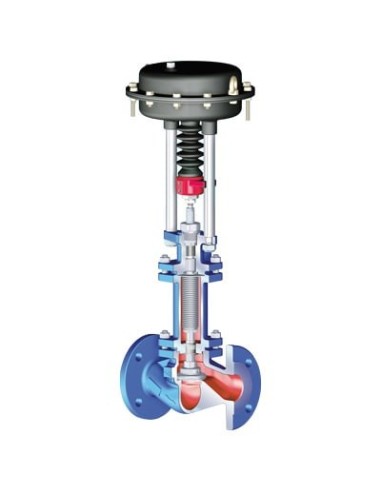

✅ Pneumatic actuator with rolling diaphragm (max. air supply pressure: 6 bar)
✅ Electric actuators with handwheel and torque switches
✅ Available in nominal pressure ratings PN16, PN25, and PN40
✅ Multiple plug designs, including metal and soft-seated options
✅ Leakage class A compliance (DIN EN 12266)
✅ Explosion-proof electric actuator versions available (ATEX-certified)
Technical Specifications
Available Models & Material Options
| Model | Nominal Pressure (PN) | Material | Nominal Diameter (DN) |
|---|
| 12.405 / 12.460 | PN16 | EN-JL1040 | DN15-250 |
| 22.405 / 22.460 | PN16 | EN-JS1049 | DN15-350 |
| 23.405 / 23.460 | PN25 | EN-JS1049 | DN15-150 |
| 34.405 / 34.460 | PN25 | 1.0619+N | DN15-500 |
| 35.405 / 35.460 | PN40 | 1.0619+N | DN15-500 |
| 54.405 / 54.460 | PN25 | 1.4408 | DN15-250 |
| 55.405 / 55.460 | PN40 | 1.4408 | DN15-150 |
Other materials and special versions are available upon request.
Stem Sealing Options
| Model | Standard Sealing | Optional Sealing |
|---|
| 405 (DN15-500) | PTFE V-ring (-10°C to 220°C) | Pure graphite (-10°C to 450°C) |
| 405 (DN15-500) | EPDM (-10°C to 150°C, suitable for water & steam up to 180°C) | -- |
| 460 (DN15-500) | Stainless steel bellows with pure graphite (-60°C to 450°C) | Stainless steel bellows with EPDM (-60°C to 150°C) |
Pressure & Temperature Ratings
| Material | Nominal Pressure (PN) | Temperature Range | Max Operating Pressure |
|---|
| EN-JL1040 | PN16 | -10°C to 120°C | 16 bar |
| EN-JS1049 | PN16 | -10°C to 250°C | 16 bar |
| EN-JS1049 | PN25 | -10°C to 250°C | 25 bar |
| 1.0619+N | PN25 | -60°C to 450°C | 25 bar |
| 1.0619+N | PN40 | -60°C to 450°C | 40 bar |
| 1.4408 | PN25 | -60°C to 450°C | 25 bar |
| 1.4408 | PN40 | -60°C to 450°C | 40 bar |
Plug Designs & Flow Characteristics
- Shut-off plug with metal seat – Leakage Class A (DIN EN 12266)
- Shut-off plug with PTFE-soft seat (max 200°C) – Leakage Class A
- Shut-off plug with reinforced sealing – Leakage Class A
- Spring-loaded non-return plug – Leakage Class A

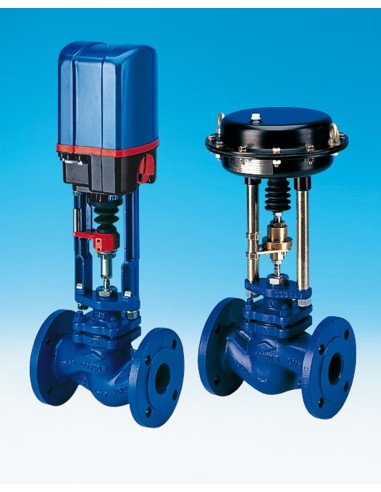

Actuation Options
Pneumatic Actuator – ARI-DP 32 - 35
- Max Air Supply Pressure: 6 bar
- Rolling diaphragm for smooth operation
- Handwheel for manual operation available (optional)
Electric Actuator – ARI-PREMIO / AUMA SAR
- ARI-PREMIO 2.2 - 25 kN / PREMIO-Plus 2G
- Digital control, IP65 protection, torque switches
- Explosion-proof version available (ATEX-certified)
- AUMA SA 07.2 - 16.2
- IP67 protection, integrated torque & travel switches, overheat protection
- ATEX version available upon request
