DETAILS

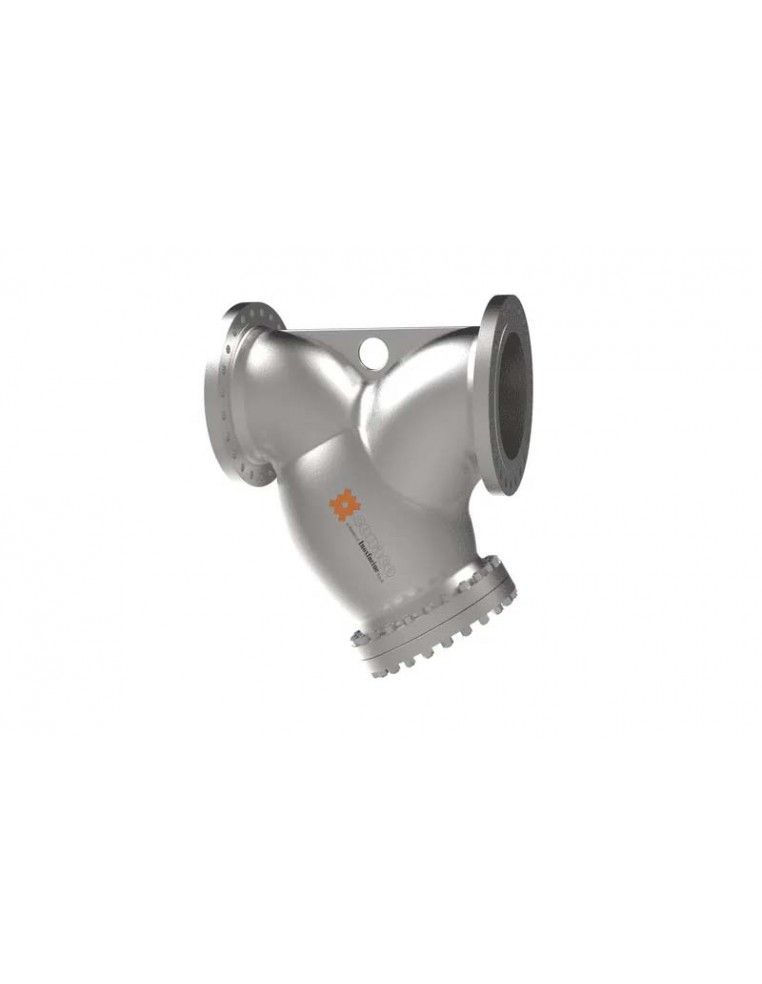

Type 707
- Cast body – flanged cover – pressure seal cover – flanged or butt-welding
- ANSI rating: from #150 psi to #4,500 psi
- Size: from 2″ to 24”
Type 777
- Cast body – flanged cover – flanged, screwed or socket-welding
- ANSI Rating: from #150 psi to #2,500 psi
- Size: from 0.5″ to 3”
Standard Materials
- Carbon steel
- Low carbon steel
- High alloy and alloy steel
- Special alloy
Available Special Features
- Connections: clamps or special flanges
- Screen: double or triple layers (mesh on perf. plate, mesh on mesh) magnetic assemblies
- Drain: any combination of nipples, flanges, valves and plugs
- Vent: optional connection
- DP Gauge: optional connections
- Lining: epoxy, cladding and rubberizing
- Coating: any painting cycle

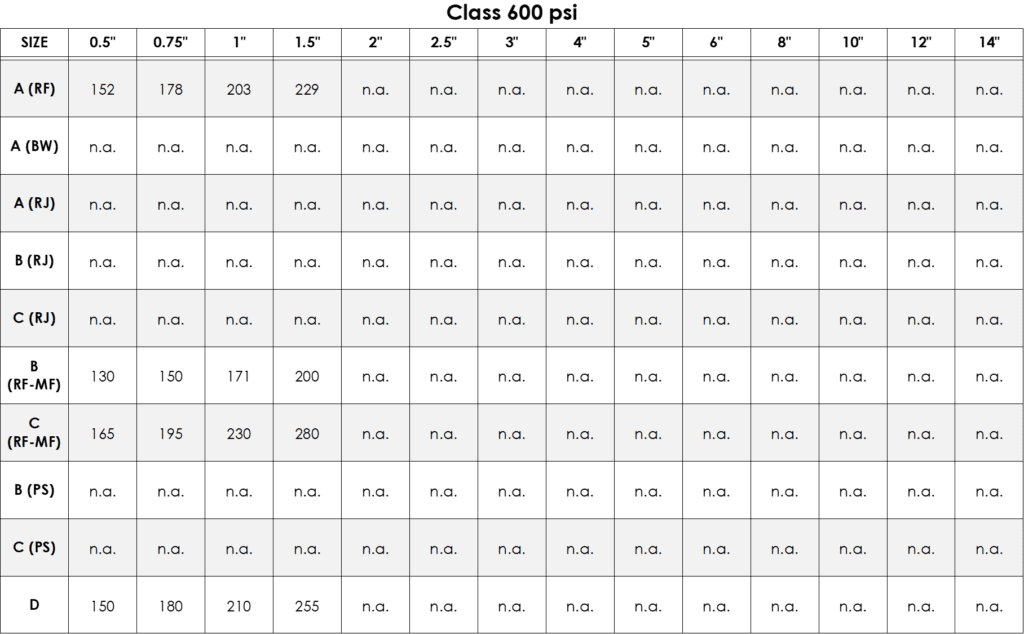

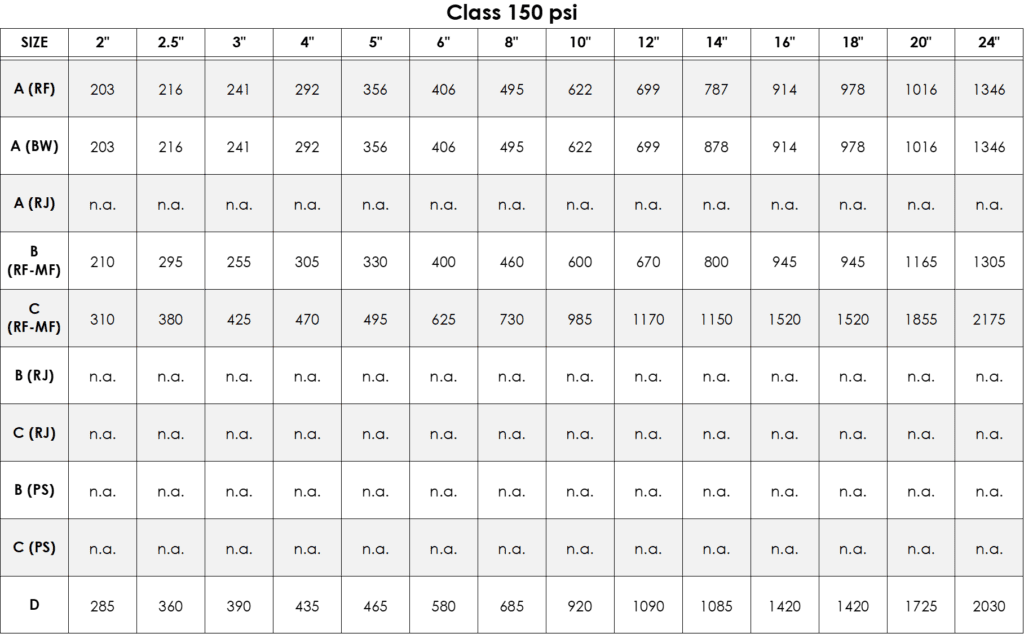

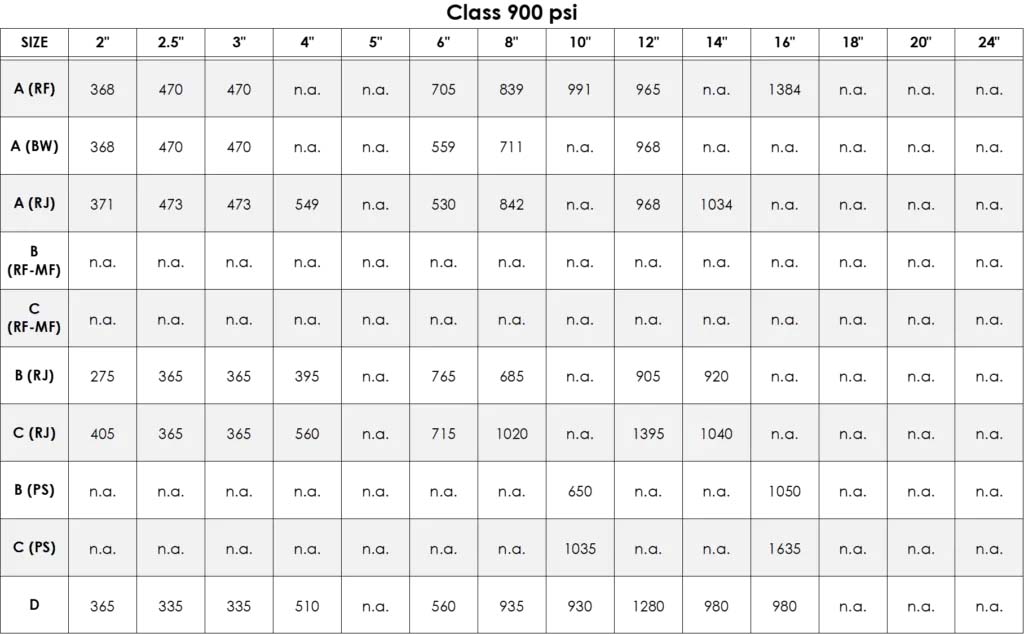

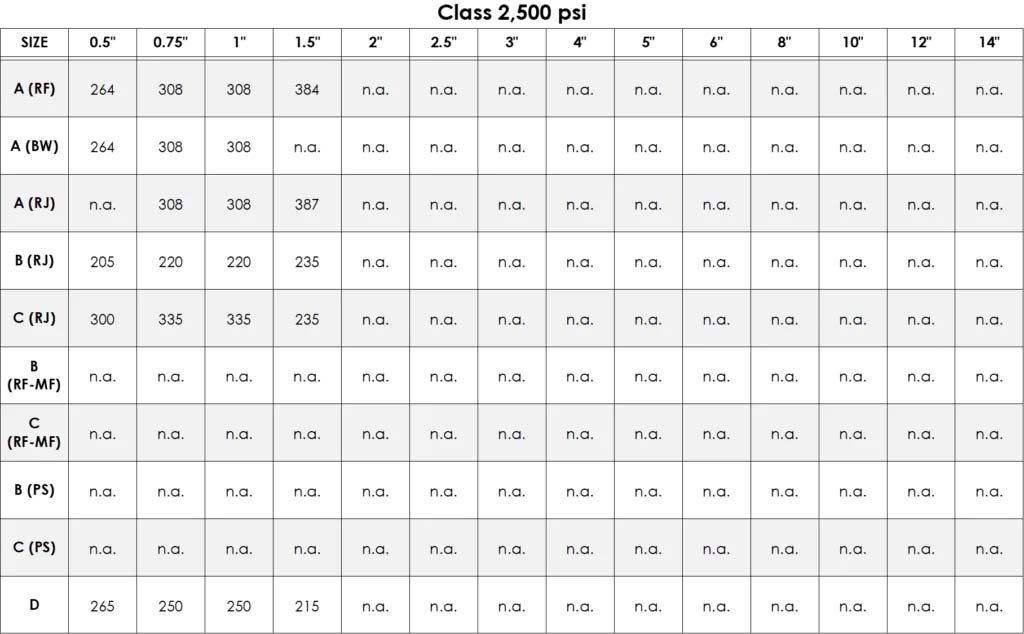

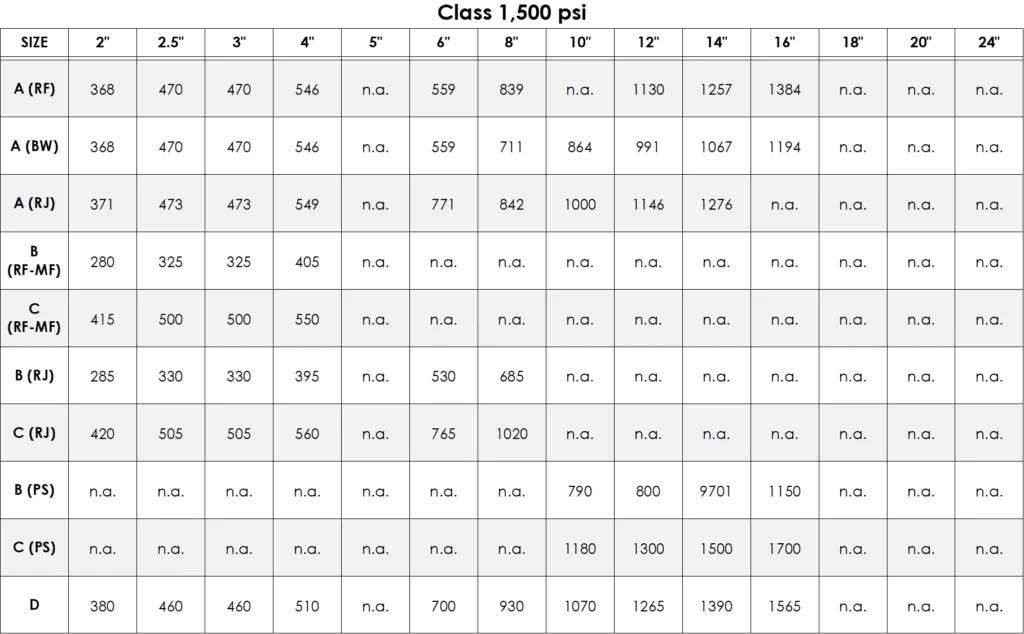

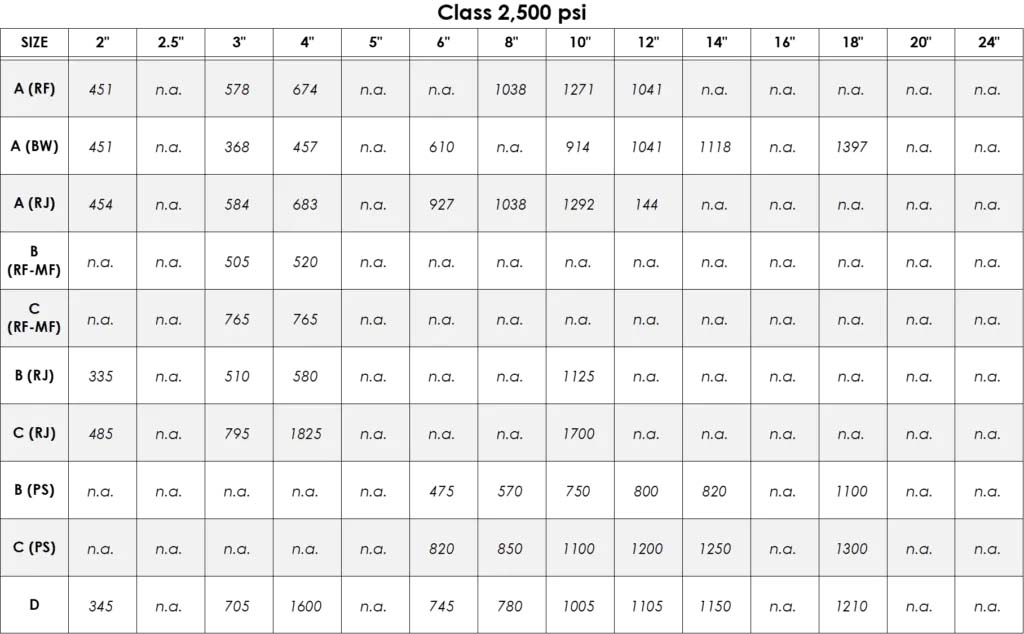

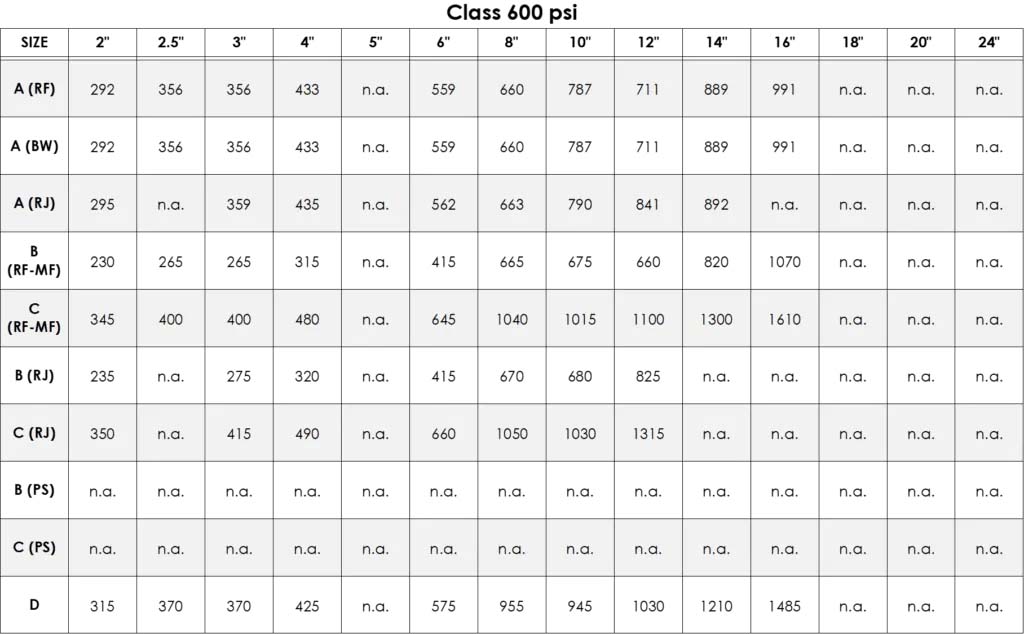

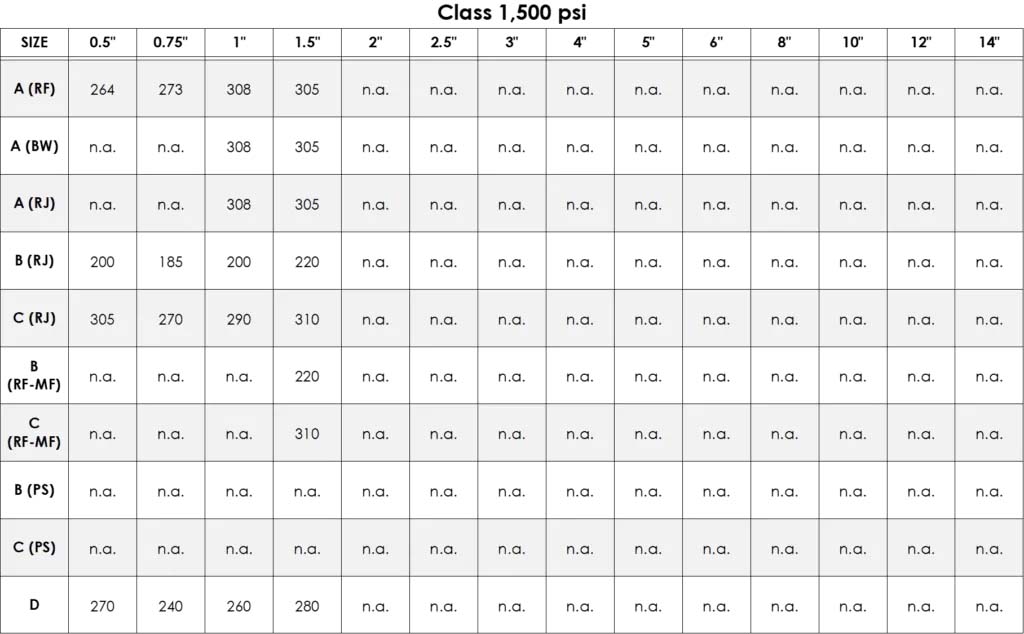

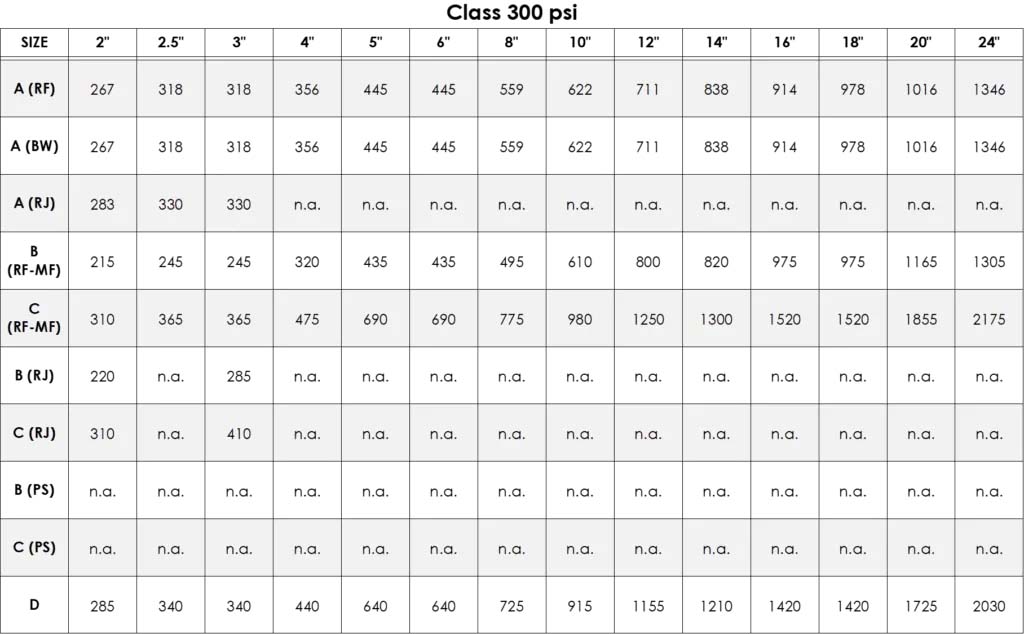

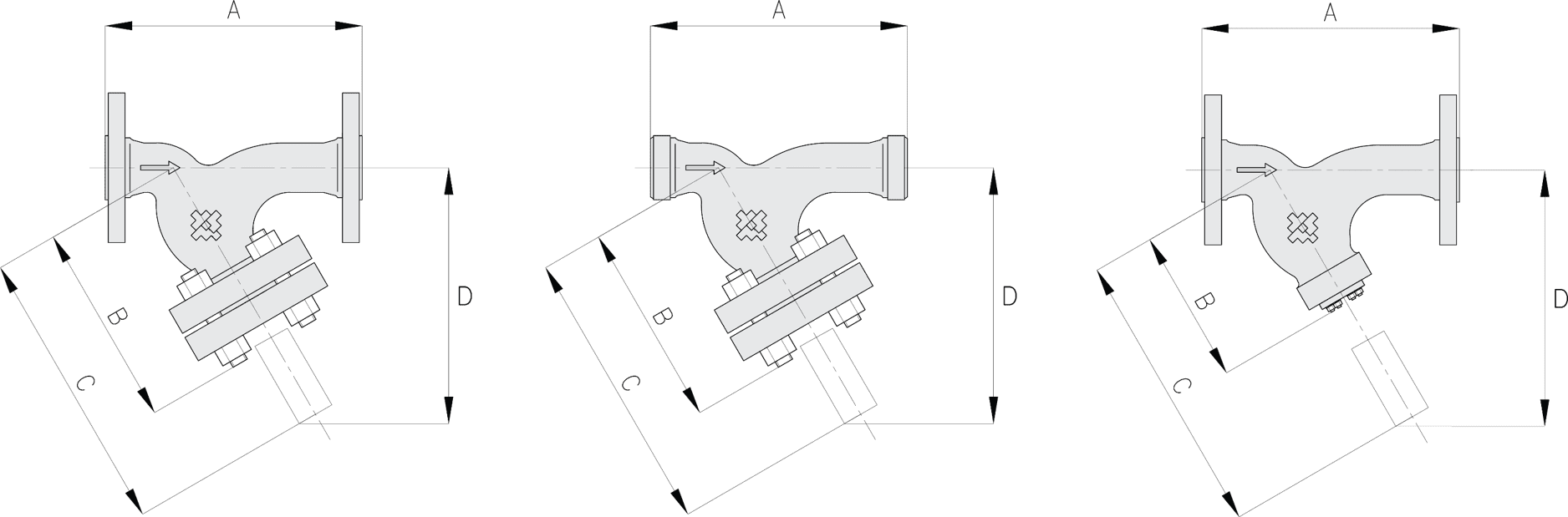

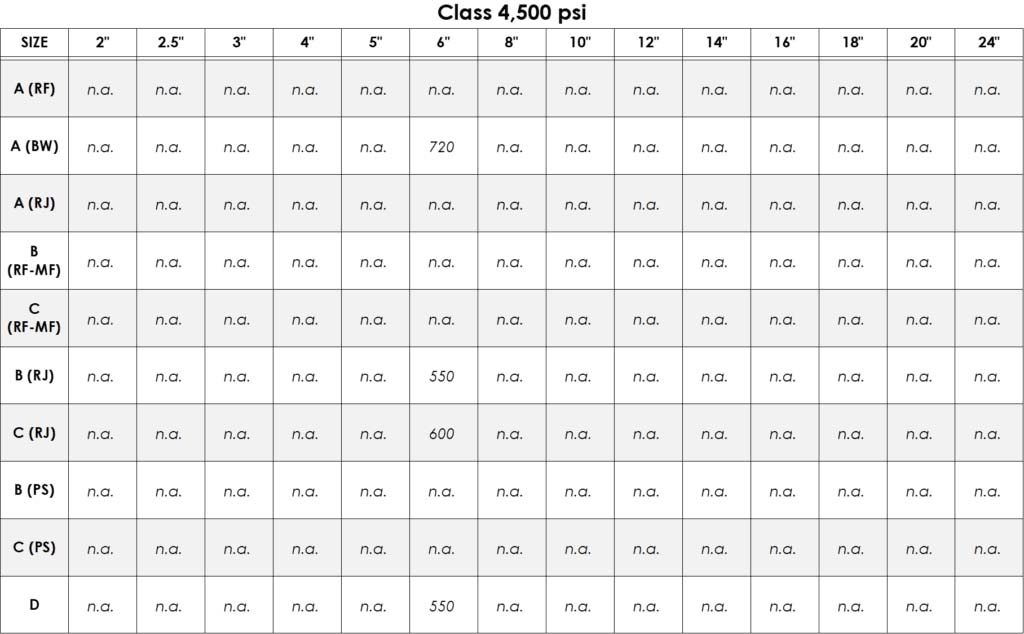

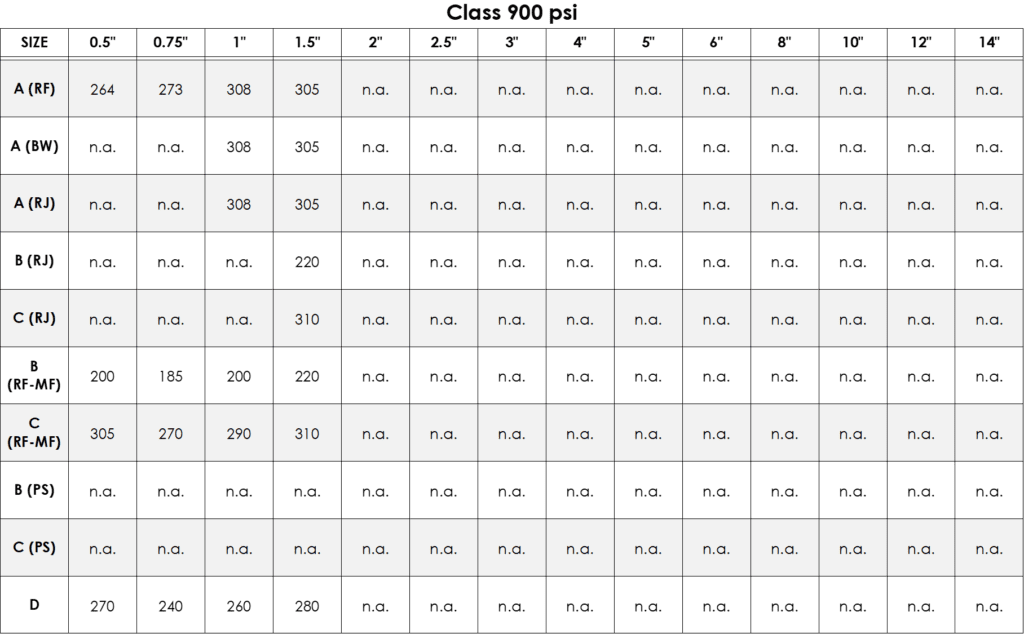

DIMENSIONS
707
777
707
777
707
777
707
777
707
777
707
777

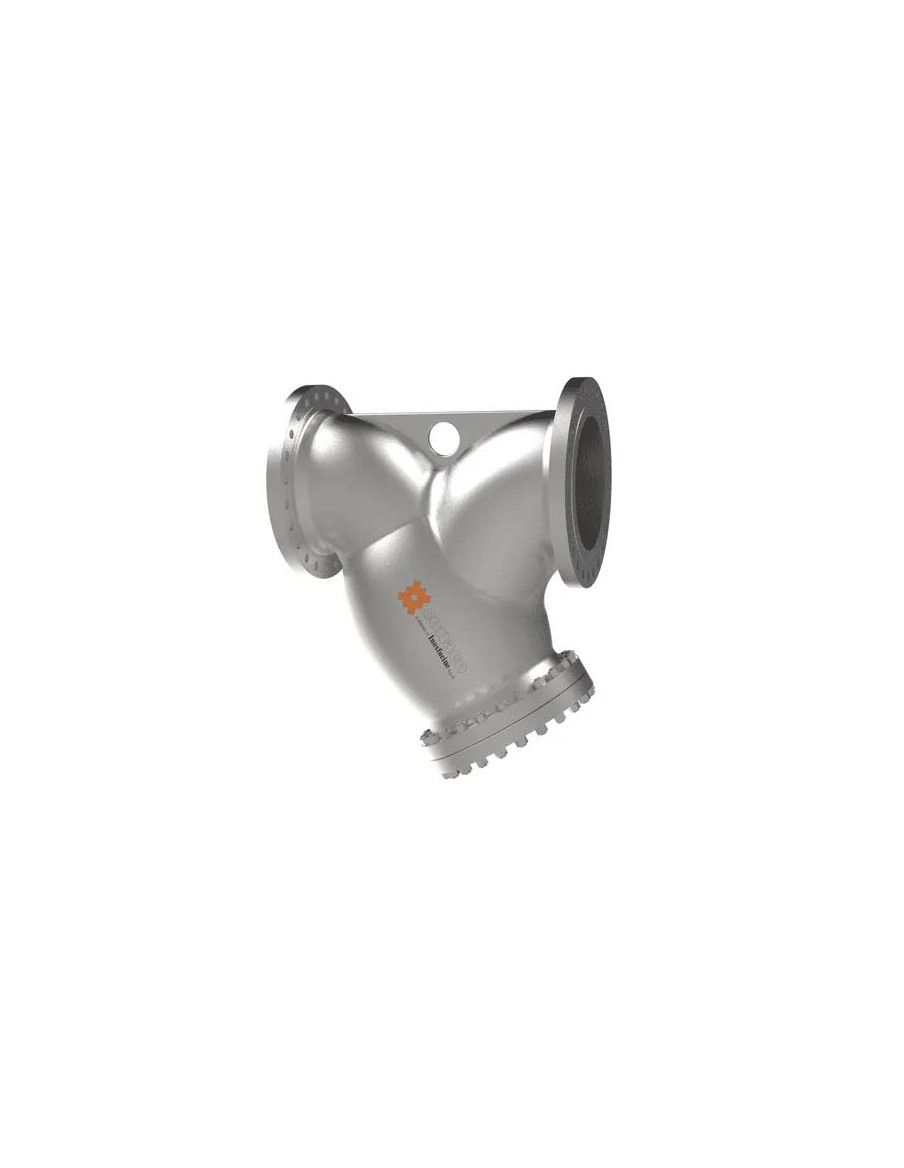

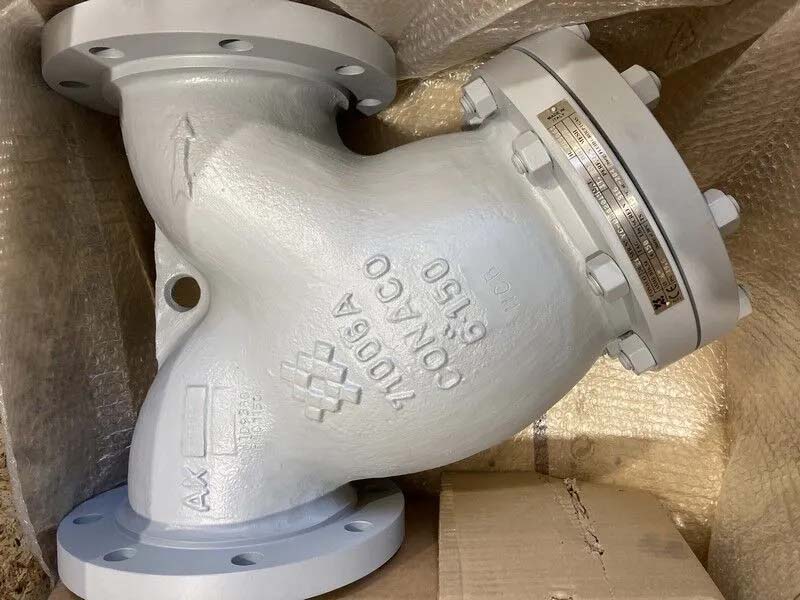

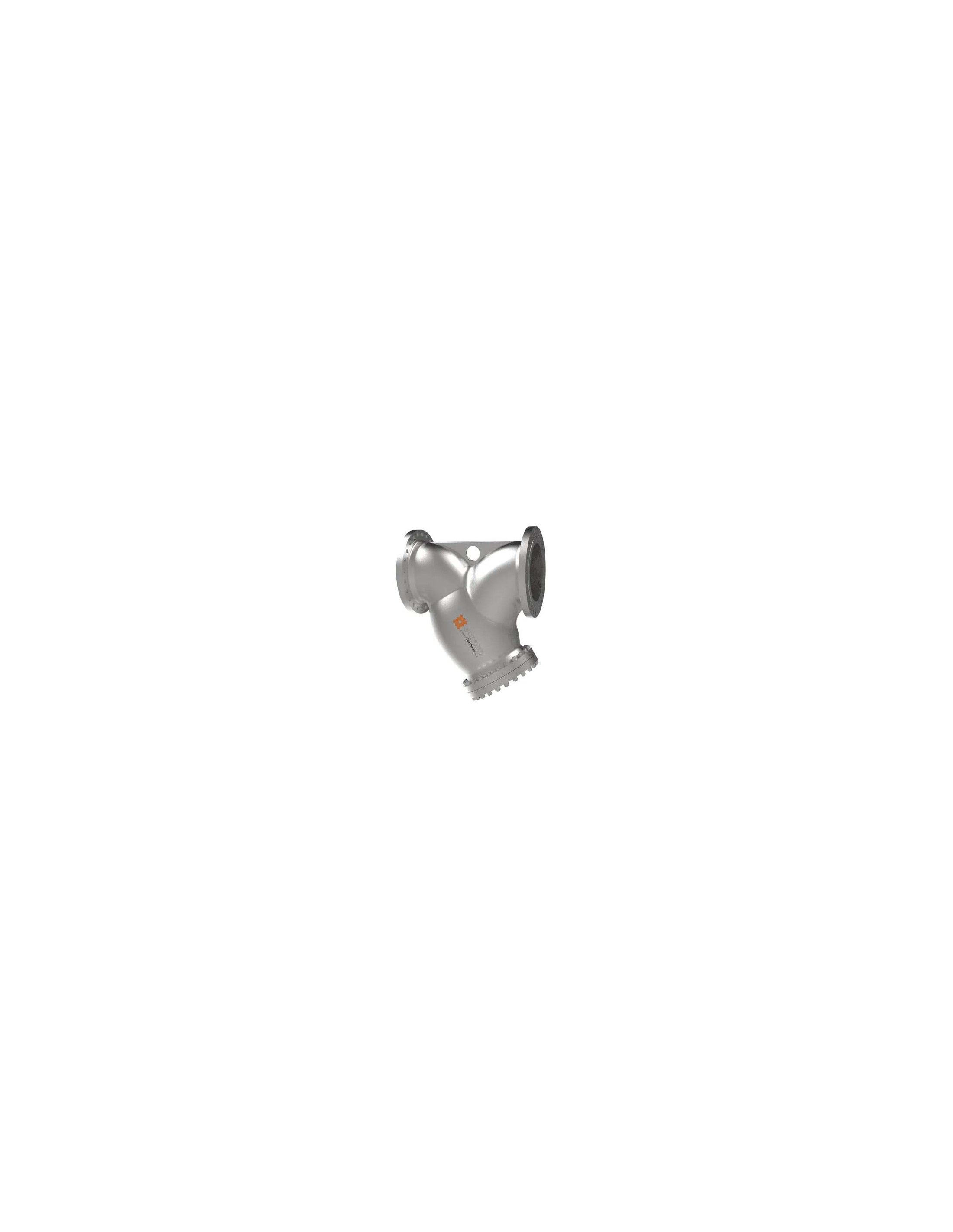

PRODUCT GALLERY
