Angle TEE strainers | Conaco

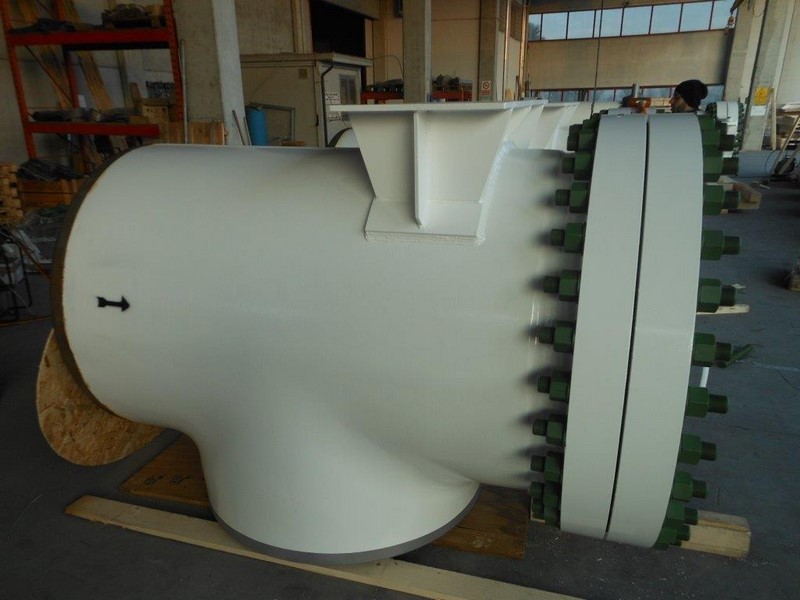

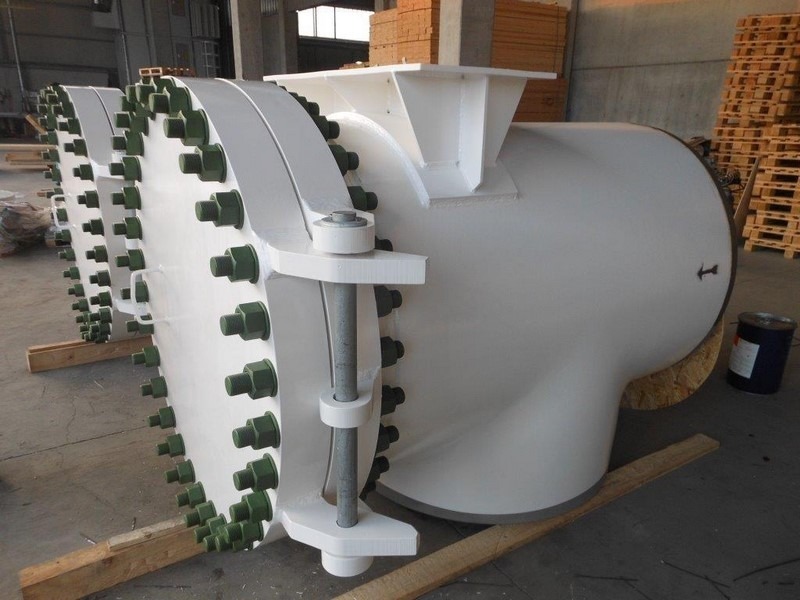

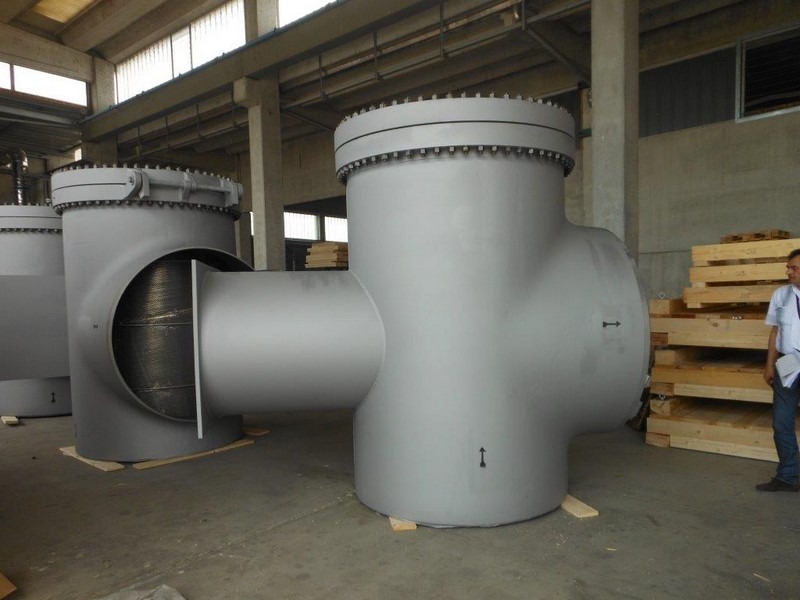

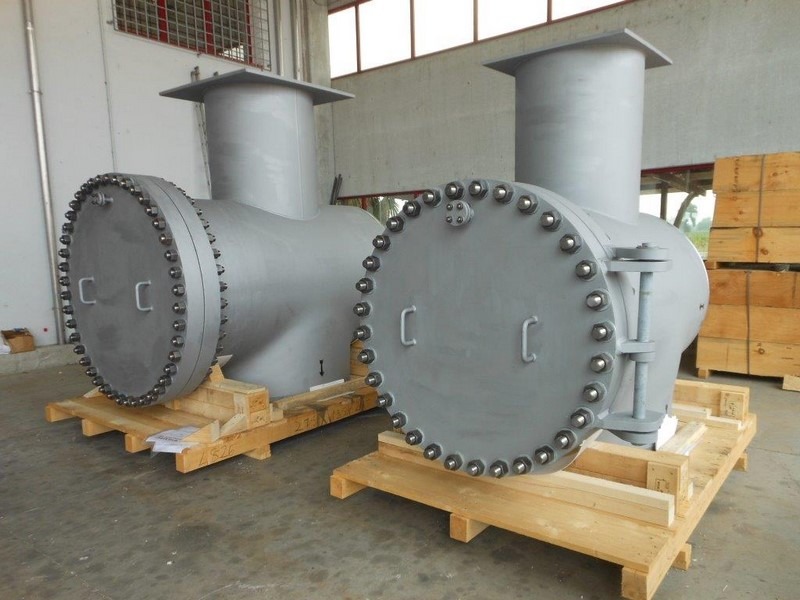

Conaco Angle TEE type strainers are fabricated at the highest industrial standards from ANSI TEE fittings and flanges.

The screen is carefully hand-adjusted to ensure a close match between body and screen
The screen is manufactured with perforated plate and wire mesh in stainless steel or other resisting alloys to customer’s requirements
Guide ring (in the same material of the body) allow an easy removal of the screen for cleaning or replacement
Different screen shapes are available to meet pressure drop requirements
An exclusive proprietary software can calculate the pressure drop for any design condition and strainer configuration
Option for cover either hinged or davit
Full traceability of all parts of all strainers ever produced

DETAILS

Type 407

Standard Materials

Available Special Features

Connections: clamps or special flanges
Screen: double or triple layers (mesh on perf. plate, mesh on mesh) magnetic assemblies
Basket: standard bath-tub, dutch shoe, special shapes
Drain: any combination of nipples, flanges, valves and plugs
Lining: epoxy, cladding and rubberizing
Coating: any painting cycle

All sizes above can be changed if extension required
