Λίστα προϊόντων κατά μάρκα Fluitek Valves

2 Οδών

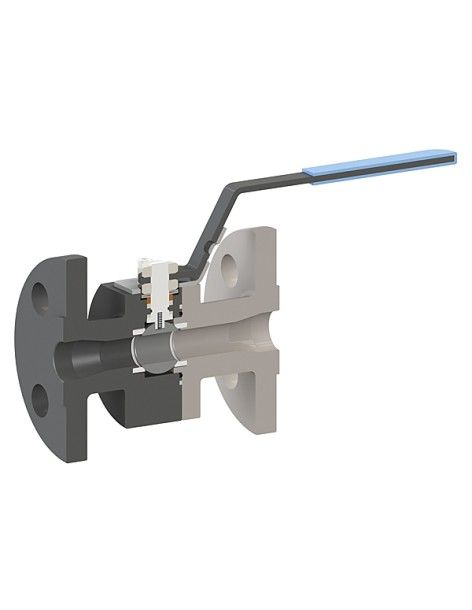

Fluitek - Σφαιρικός κρουνός - Floating Ball

Fluitek - Ball Valve Floating Ball

Floating Ball Valves typical application is for smaller sizes (up to 6 inches) and lower pressure classes.

Ενέργεια

Trunnion Mounted

Fluitek - Σφαιρικός κρουνός Trunnion Mounted Side Entry

Fluitek - Ball Valve Trunnion Mounted Side Entry

Trunnion Side Entry Ball Valves typical application is for gas or crude oil pipelines, larger sizes (up to 60 inches) and higher pressure classes (ASME 4500 or API 15000psi). Body construction can be two or three pieces for smaller sizes (up to 6” RB), three pieces for larges dimensions. Raw material can be either forgings or centrifugal castings. Wide...

Ενέργεια

Trunnion Mounted

Fluitek - Σφαιρικός κρουνός Trunnion Mounted Welded Body

Fluitek - Ball Valve Trunnion Mounted Welded Body

Trunnion Welded Body Ball Valves typical application is for gas transmission, buried pipelines (underground), larger sizes (up to 60 inches) and medium pressure classes (up to ASME 900 psi). Raw material can be either forgings or centrifugal castings. Wide range of materials: carbon steels, austenitic or martensitic SS.

Ενέργεια

Trunnion Mounted

Fluitek - Σφαιρικός κρουνός Trunnion Mounted Top Entry

Fluitek - Ball Valve Trunnion Mounted Top Entry

Trunnion Top Entry Ball Valves add, to the main features of Side Entry Type, the possibility to make maintenance without removing the valve from the pipeline. Special tools provided by Fluitek Orsenigo (necessary only for larger sizes) allow the User to remove the trim vertically, from bonnet side. Body raw material can be forging (for smaller sizes) or...

Ενέργεια

Εμβόλου

Fluitek - Βαλβίδα αντεπιστροφής - Piston Type Pressure Seal Bonnet

Fluitek - Check Valve - Piston Type Pressure Seal Bonnet

The swing check valves and the tilting disc type check valves are not the only ones used in the high pressure, high temperature lines, typical of the power and steam generation industries.

Ενέργεια

Κλαπέ

Fluitek - Βαλβίδα αντεπιστροφής κλαπέ - Bolted Bonnet

Fluitek - Swing Check Valve - Bolted Bonnet

FLUITEK ORSENIGO VALVES has a very long experience in supplying this type of non return valve. It’s the most used one by the industry, normally coupled with on-off bolted bonnet gate valves and globe valves.

Ενέργεια

Φλαντζωτή 150 lbs 300 lbs 600 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Low Temperature Carbon Steel High Strength Carbon Steel Low Alloy Steel

Κλαπέ

Fluitek - Βαλβίδα αντεπιστροφής κλαπέ - Piggable Bolted Bonnet

Fluitek - Swing Check Valve - Piggable Bolted Bonnet

The on-off pipeline valves included in FLUITEK ORSENIGO VALVES lines of production (ball valves, through conduit gate valves) need very often to be installed in lines subject to “pigging” operations, either for lines internal periodical cleaning and/or for checking status of corrosion of the pipeline. In this case the non return valves need to present no...

Ενέργεια

Φλαντζωτή 150 lbs 300 lbs 600 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Low Temperature Carbon Steel High Strength Carbon Steel Low Alloy Steel

Κλαπέ

Fluitek - Βαλβίδα αντεπιστροφής κλαπέ - Pressure Seal Bonnet

Fluitek - Swing Check Valve - Pressure Seal Bonnet

This type of valve, non-return, is coupled with on-off valves in high pressure lines to protect the system from the fluid reversing flow, when regular flow is stopped. The disc resistance to flow is keeping it open, a minimum flow rate being needed.

Ενέργεια

Φλαντζωτή Κολλητή Butt 600 lbs 900 lbs 1500 lbs 2500 lbs 4500 lbs ANSI Ανοξείδωτο Austenitic Stainless Steel Low Alloy Steel Nickel Alloys Cr Alloys

Κεκλιμένου Δίσκου

Fluitek - Βαλβίδα αντεπιστροφής κεκλιμένου δίσκου - Bonnetless

Fluitek - Tilting Disc Check Valve - Bonnetless

Tilting disc check valves, otherwise called “equilibrated disc check valves”, have the well known features of a typical “no slam” behavior. The disc is maintained open in equilibrium by the fluid flow and when it stops the reversed flow makes the disc move to the closed position by rotating it against the seat, not slamming into it as it happens in a...

Ενέργεια

Κεκλιμένου Δίσκου

Fluitek - Βαλβίδα αντεπιστροφής κεκλιμένου δίσκου - Pressure Seal Bonnet

Fluitek - Tilting Disc Check Valve - Pressure Seal Bonnet

This type of valve (also called “equilibrated disc non return valve”) is coupled with on-off valves in high pressure lines to protect the system from the fluid reversing flow, when regular flow is stopped.

Ενέργεια

Κολλητή Butt 600 lbs 900 lbs 1500 lbs 2500 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Low Alloy Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Bellows Seal Bolted Bonnet

Fluitek - Gate Valve - Bellows Seal Bolted Bonnet

Bellows seal valves are used in applications where a hermetic tightness is essential in order to prevent any possible leakage of process fluid into the atmosphere, where the fluid is particularly hazardous (poisonous, aggressive, radioactive). FLUITEK ORSENIGO VALVES is specialised in gate valves with bellows seals, in particular in the manufacturing of:

Ενέργεια

Φλαντζωτή 600 lbs 900 lbs 1500 lbs 2500 lbs ANSI Χυτοχάλυβας Low Alloy Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Bellows Seal For Nuclear Power Generation

Fluitek - Gate Valve - Bellows Seal For Nuclear Power Generation

Valves used in the primary heat transport system of nuclear power plants are designed in accordance with ASME Boiler And Pressure Vessel Code, Section III, Subsection NB. They have to answer to three major technical requirements: tightness of sealing system to prevent radioactive fluid leakages into the atmosphere, earthquake resistant constructions,...

Ενέργεια

Κολλητή Butt 600 lbs 900 lbs 1500 lbs ANSI Austenitic Stainless Steel Low Temperature Carbon Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Compact Design

Fluitek - Gate Valve - Compact Design Gate Valve

FLUITEK ORSENIGO VALVES has applied its extended experience in high pressure applications of gate valves to a line of small size (1/2” to 2”) forged construction specially designed gate valves. Standard of reference is API 602 / ISO 15761 and/or EN 12516.

Ενέργεια

Φλαντζωτή 900 lbs 1500 lbs 2500 lbs 4500 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Austenitic-Ferritic Stainless Steels (Duplex) Low Temperature Carbon Steel Low Alloy Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Extended Bolted Bonnet for Cryogenic Service

Fluitek - Gate Valve - Extended Bolted Bonnet for Cryogenic Service

FLUITEK ORSENIGO VALVES provides considerable experience in the production of gate valves for low temperature service (below -50°C). Low temperature test in accordance with BS 6364:1984 Appendix A is available.

Ενέργεια

Κολλητή Butt 600 lbs ANSI Austenitic Steels

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Parallel Slide Bolted Bonnet

Fluitek - Gate Valve - Parallel Slide Bolted Bonnet

This type of on-off valve is an alternative to the traditional wedge type gate valves. The disc is in two halves, spring loaded, that seat on parallel seat rings. The disc “slides” in contact with the seats, hence the name. The advantages of this product versus the traditional wedge type product are:

Ενέργεια

Φλαντζωτή Κολλητή Butt 150 lbs 300 lbs 600 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Low Alloy Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Parallel Slide Pressure Seal Bonnet

Fluitek - Gate Valve - Parallel Slide Pressure Seal Bonnet

FLUITEK ORSENIGO VALVES has very extended experience in manufacturing this type of valve. They are an alternative to the traditional flex wedge type gate valves. The disc is in two halves, spring loaded, that seat on parallel seat rings. The disc “slides” in contact with the seats, hence the name. The advantages of this product versus the traditional...

Ενέργεια

Κολλητή Butt 900 lbs 1500 lbs 2500 lbs 4500 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Low Alloy Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Through Conduit Bolted Bonnet

Fluitek - Gate Valve - Through Conduit Bolted Bonnet

Through conduit gate valves are an alternative to ball valves for transmission pipelines. The choice is very often based on past customer satisfaction, more than any technical consideration. FLUITEK ORSENIGO VALVES through conduit valves feature standard principles of this well known type of product.

Ενέργεια

Φλαντζωτή Κολλητή Butt 150 lbs 300 lbs 600 lbs 900 lbs 1500 lbs 2500 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Duplex Stainless Steel Super Duplex Stainless Steel Low Temperature Carbon Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Through Conduit Expanding Gate

Fluitek - Gate Valve - Through Conduit Expanding Gate

This type of valve includes in itself the features of a through conduit service and of a standard gate valve with a parallel seating surfaces.

Ενέργεια

Φλαντζωτή 300 lbs 600 lbs 900 lbs 1500 lbs 2500 lbs ANSI Χυτοχάλυβας Austenitic Stainless Steel Duplex Stainless Steel Super Duplex Stainless Steel Low Temperature Carbon Steel Nickel Alloys

Βάνες Σύρτου

Fluitek - Βάνα σύρτου - Wedge Type Bolted Bonnet

Fluitek - Gate Valve - Wedge Type Bolted Bonnet

The most traditional, widely used, on-off valve FLUITEK ORSENIGO VALVES’s approach to manufacture this type of valve is to maintain high integrity of components, traceability, process controls and tests in order to supply a superior product to for particular customers demands.

Ενέργεια

Φλαντζωτή 150 lbs 300 lbs 600 lbs ANSI Austenitic-Ferritic Stainless Steels (Duplex) Austenitic Steels Low Temperature Carbon Steel Low Alloy Steel Chrome-moly Low Alloy Steels Nickel Alloys
