Διαστολικά

Απορροφούν τις διαστολές και συστολές των σωληνώσεων λόγω θερμοκρασιακών μεταβολών, προστατεύοντας το δίκτυο από ζημιές.

Εμφανίζονται τα στοιχεία 1-12 από σύνολο 36

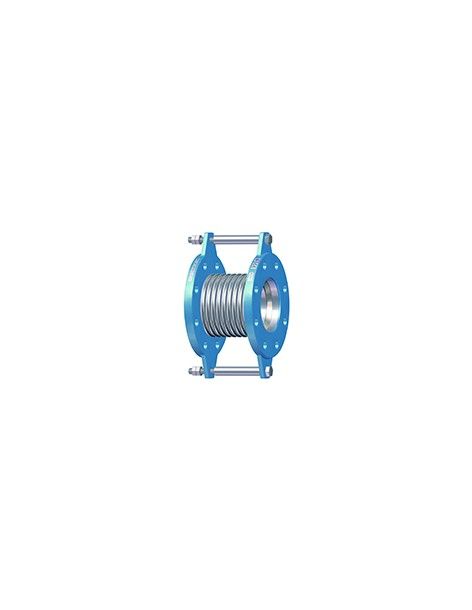

Comeval - Διαστολικά TORAFLEX - S50 / S25

Διαστολικά

Comeval - Διαστολικά TORAFLEX - S50 / S25

Comeval - Metal expansion joints, flanged or butt weld ends BW TORAFLEX - S50 / S25

Ενέργεια

Φλαντζωτή Κολλητή Butt PN 10 PN 16 DIN Ανοξείδωτο

Macoga - Διαστολικά - Two Ply

Διαστολικά

Macoga - Διαστολικά - Two Ply

Macoga - Expansion Joints - Type Two Ply

The bellows, as the most critical part of the Expansion Joint, can be single ply, multiply, redundant ply or reinforced. In two ply testable bellows each ply is designed for the full operating conditions (pressure, temperature and movements). If a hole or stress crack develops in the inner ply during service, the outer ply takes over without exposing...

Ενέργεια

Macoga - Διαστολικά - PTFE

Διαστολικά

Macoga - Διαστολικά - PTFE

Macoga - Expansion Joints - Type PTFE

Fluoroplastics possesses unusual and unique characteristics of thermal stability, non-sticking surface, extremely low co-efficient of friction and resistance to practically all corrosive fluids and forms of chemical attack. PTFE or Teflon lined Expansion Joints are widely used in paper mills, chemical plants and other piping applications where acids and...

Ενέργεια

Macoga - Διαστολικά - MWY

Διαστολικά

Macoga - Διαστολικά - MWY

Macoga - Expansion Joints - Type MWY

This model is designed to absorb lateral and angular movements in only one plane. It is made up of two bellows joined together by a linking pipe and fitted with welding ends or flanges plus a double articulated system. The hinge mechanisms are designed to contain pressure thrust.

Ενέργεια

Macoga - Διαστολικά - MWT

Διαστολικά

Macoga - Διαστολικά - MWT

Macoga - Expansion Joints - Type MWT

These expansion joints are made of one single bellows element with end connections plus a tie rod system. Regardless of accessories, such as liners and covers, this model absorbs all types of movements in any length of piping but it is mainly used to absorb axial movements and small amounts of lateral movement.

Ενέργεια

Macoga - Διαστολικά - MWP

Διαστολικά

Macoga - Διαστολικά - MWP

Macoga - Expansion Joints - Type MWP

These expansion joints are made of one single bellows element fitted with welding ends or flanges plus a system of articulated supports which allow for angular movement in one plane only. The hinge mechanism is designed to accept full pressure thrust. These units do not allow axial movement however, some types of hinge systems can be provided with holes...

Ενέργεια

Macoga - Διαστολικά - MWL

Διαστολικά

Macoga - Διαστολικά - MWL

Macoga - Expansion Joints - Type MWL

This model is made up of two bellows joined together by a central pipe and a system of tie rods able to withstand the thrust produced by the internal pressure. This model is used to absorb lateral movements in all planes. In addition and with a special design and/or positioning of the tie rods system this type may be used to absorb some axial and angular...

Ενέργεια

Macoga - Διαστολικά - MWK

Διαστολικά

Macoga - Διαστολικά - MWK

Macoga - Expansion Joints - Type MWK

Designed to absorb lateral movements in any direction and angular movements in one plane only. This model is made up of two bellows joined together by a linking pipe and a universal system of double articulated supports.

Ενέργεια

Macoga - Διαστολικά - MWCD

Διαστολικά

Macoga - Διαστολικά - MWCD

Macoga - Expansion Joints - Type MWCD

Designed to absorb lateral and angular movements in any direction. This model is made up of two bellows joined together by a linking pipe and a double cardan system. A double gimbal expansion joint is basically a two single gimbal expansion joints and an intermediate pipe that joins them. This type of Expansion Joint can absorb a large lateral movement in...

Ενέργεια

Macoga - Διαστολικά - MWC

Διαστολικά

Macoga - Διαστολικά - MWC

Macoga - Expansion Joints - Type MWC

Gimbal Expansion Joints are designed to allow angular movement in any plane by the use of two pairs of hinges affixed to a common floating gimbal ring. The gimbal ring, hinged and pins are designed to restrain the pressure thrust due to internal pressure and shear forces. A gimbal ring is either round or square. For round gimbals the torsional moment...

Ενέργεια

Macoga - Διαστολικά - MWA

Διαστολικά

Macoga - Διαστολικά - MWA

Macoga - Expansion Joints - Type MWA

These expansion joints are made of one single bellows element with end connections. Regardless of accessories, such as liners and covers, this model absorbs all of the movements in any one length of piping but it is mainly used to absorb axial movements. It does not restrain pressure thrust so adequate anchors and guides must be provided and they can be...

Ενέργεια

Macoga - Διαστολικά - MUX

Διαστολικά

Macoga - Διαστολικά - MUX

Macoga - Expansion Joints - Type MUX

These expansion joints are characterized by a high convolution profile and thick ply construction. They can be manufactured in circular, oval or any particular shape. Thick Wall expansion joints are frequently used in heat exchangers, furnace and blast furnace pipe work.

Ενέργεια
